multicut*: Профиль стали: трубная резьба Витворта
| Винтовые отверстия |
Предпочитаемый размер |
Номер артикула стальная |
||||
|---|---|---|---|---|---|---|

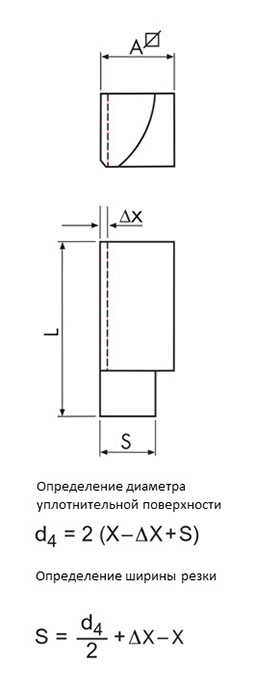

| d1 | d4 | A |
L | S |  X |
|
| mm | mm | mm | mm | mm | ||
| G 1/8" | 15 | 6 | 17,5 | 2,5 | 0 | 20 10 11 |
| G 1/8" | 17 | 6 | 17,5 | 3,5 | 0 | 20 10 12 |
| G 1/8" | 19 | 6 | 17,5 | 4,5 | 0 | 20 10 13 |
| G 1/4" | 19 | 8 | 19 | 3,5 | 0 | 20 20 11 |
| G 1/4" | 21 | 8 | 19 | 4,5 | 0 | 20 20 12 |
| G 1/4" | 25 | 8 | 19 | 6,5 | 0 | 20 20 13 |
| G 3/8" | 23 | 8 | 26 | 4,5 | 1 | 20 30 11 |
| G 3/8" | 25 | 8 | 26 | 5,5 | 1 | 20 30 12 |
| G 3/8" | 28 | 8 | 26 | 7,0 | 1 | 20 30 13 |
| G 1/2" | 27 | 8 | 26 | 4,5 | 1 | 20 30 12 |
| G 1/2" | 29 | 8 | 28 | 5,5 | 0 | 20 40 12 |
| G 1/2" | 34 | 8 | 28 | 8,0 | 0 | 20 40 13 |
| G 3/4" | 33 | 12 | 35 | 6,0 | 0 | 20 50 11 |
| G 3/4" | 36 | 12 | 35 | 7,5 | 0 | 20 50 12 |
| G 3/4" | 42 | 12 | 35 | 10,5 | 0 | 20 50 13 |
| G 1" | 40 | 12 | 35 | 6,5 | 0 | 20 60 11 |
| G 1" | 42 | 12 | 35 | 7,5 | 0 | 20 50 12 |
| G 1" | 47 | 12 | 35 | 10,0 | 0 | 20 60 13 |
| G 1.1/8" | 45 | 12 | 35 | 6,0 | 0 | 20 50 11 |
| G 1.1/8" | 47 | 12 | 37 | 7,0 | 0 | 20 70 12 |
| G 1.1/8" | 51 | 12 | 37 | 9,0 | 0 | 20 70 13 |
| G 1.1/4" | 50 | 12 | 35 | 6,0 | 0 | 20 50 11 |
| G 1.1/4" | 52 | 12 | 37 | 7,0 | 0 | 20 70 12 |
| G 1.1/4" | 58 | 12 | 35 | 10,0 | 0 | 20 60 13 |
| G 1.3/8" | 52 | 12 | 37 | 7,0 | 0 | 20 70 12 |
| G 1.3/8" | 54 | 12 | 37 | 8,0 | 0 | 20 90 11 |
| G 1.3/8" | 59 | 12 | 35 | 10,5 | 0 | 20 50 13 |
| G 1.1/2" | 56 | 12 | 35 | 6,0 | 0 | 20 50 11 |
| G 1.1/2" | 58 | 12 | 37 | 7,0 | 0 | 20 70 12 |
| G 1.1/2" | 65 | 12 | 35 | 10,5 | 0 | 20 50 13 |
| G 1.3/4" | 63 | 12 | 35 | 7,5 | 0 | 20 50 12 |
| G 1.3/4" | 65 | 12 | 37 | 8,5 | 0 | 21 10 12 |
| G 1.3/4" | 69 | 12 | 35 | 10,5 | 0 | 20 50 13 |
| G2" | 69 | На запроc | ||||
| G2" | 76 | На запрос |
